Name: EOC Master, 2 outputs
Time: 3/20/2014
Views:

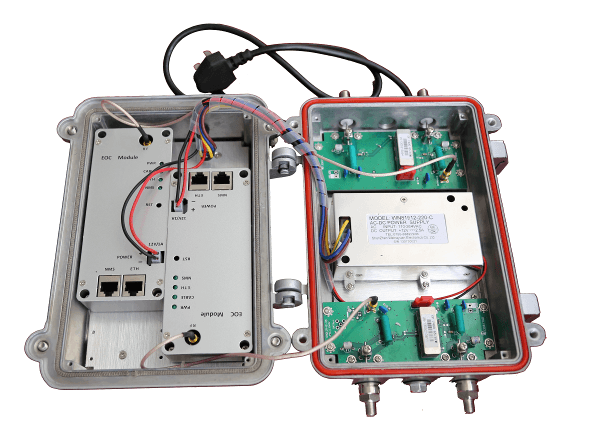

Product description: DW-EM72 is the outdoor EOC Master of the EOC (Ethernet Over Coxial) solution. It is in compliant with HomePlug AV standard. The DW-EM72 have two EOC modules. It provide two TV input, two com output and two 10/100/1000M auto-negotiation uplink ports. It offers the high-speed data service to the customer based on the coaxial cable network.
Product details :

 HomePlug AV solution, based the Qualcomm INT7410 chipset

 Modularized design, easy for maitain

 Aluminum alloy die casting shaping, good heat dissipation

 Outdoor waterproof designed, 60V/220V power supply optional

 7.5-65Mhz frequency for EOC signals., no influence on CATV Service

 PHY Layer speed 600Mbps, MAC Layer throughput up to 320Mpbs

 Support bi-direction data encryption

 Support broadcast storm limitation

 Support data packet statistics

 Support auto-update and auto-configuration

 Support WEBCLISNMP based network management

 Support On-line upgrading
