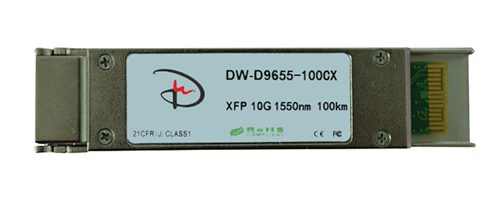

10G 100km 1550nm XFP Optical Transceiver

Features

¨      XFP MSA Rev 4.5 Compliant

¨      Data rate from 9.95Gbps to 11.3Gbps

¨      No Reference Clock required

¨      Cooled 1550 nm EML and APD receiver

¨      link length up to 100km

¨      +1.8V,+3.3V,+5V Supply Voltage

¨      Low Power Dissipation 2W Maximum

¨       XFI and lineside loopback Mode Supported

¨      -5ºC to 70ºC Operating Case Temperature

¨      -40ºC to 85ºC Industrial Temperature

¨      Diagnostic Performance Monitoring of module temperature,

Supply Voltages, laser bias current, transmit opticalpower, and receive optical power

¨      RoHS6 compliant (lead free)

Applications

¨      SONET OC-192&SDH STM 64 (with/with out FEC)

¨      10GBASE ZR/ZW (with/with out FEC)

¨      10G Fiber Channel
